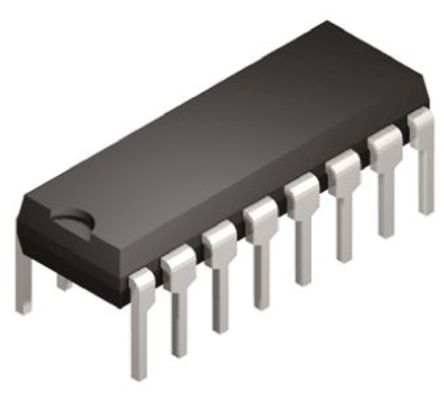

- DG211CJ+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC35289800
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:DIP-16
-
Datasheet:Datasheet 3D Model
-
Description:MAXIM INTEGRATED PRODUCTS DG211CJ+.. Analogue Switch, Quad Channel, SPST, 4Channels, 175Ω, ± 4.5V to ± 18V, DIP, 16Pins
-
Stock Locations:
-
Availability:285 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.87
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 4 Circuit IC Switch 1:1 175Ohm 16-PDIP
DG211CJ+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | DIP-16 |
| Supply Voltage (DC) | 25.0V (max) |
| Contacts Type | SPST |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Drain to Source Resistance (on) (Rds) | 175 Ω |
| Number of Bits | 4 Bit |
| Power Dissipation | 842 mW |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 842 mW |
| Show | |
| Size-Length | 19.43 mm |
| Size-Width | 7.87 mm |
| Size-Height | 4.45 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
