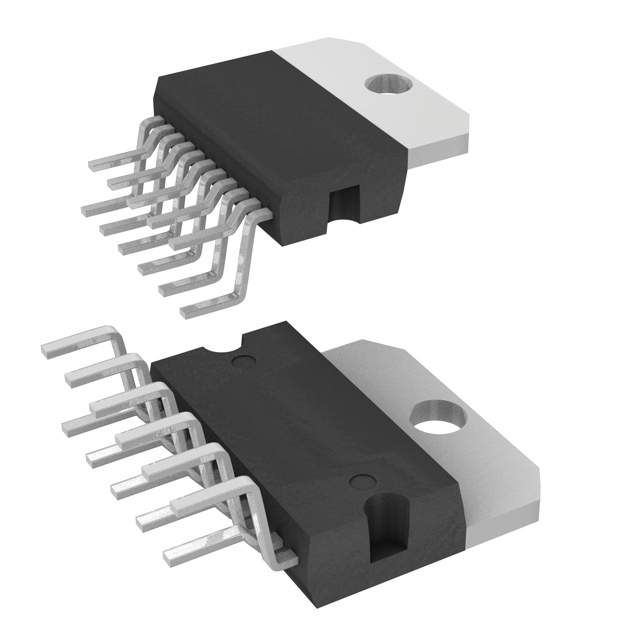

Image is for your reference only,please check specifications for details
- TDA7263M - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC121753733
-
Category:Audio Amplifier IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 2CH Stereo 12W Class-AB 11Pin(11+Tab) MULTIWATT V Tube
-
Stock Locations:
-
Availability:1,491 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.66
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Amplifier IC 2-Channel (Stereo) Class AB 11-Multiwatt
TDA7263M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | Multiwatt-11 |
| Supply Voltage (DC) | 35.0 V |
| Output Current | 2000 mA |
| Supply Current | 2.00 A |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 30000 mW |
| Output Power | 12 W |
| Output Current (Max) | 2000 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 30000 mW |
| Supply Voltage | 10V ~ 30V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Length | 19.6 mm |
| Size-Width | 5 mm |
| Size-Height | 10.7 mm |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
