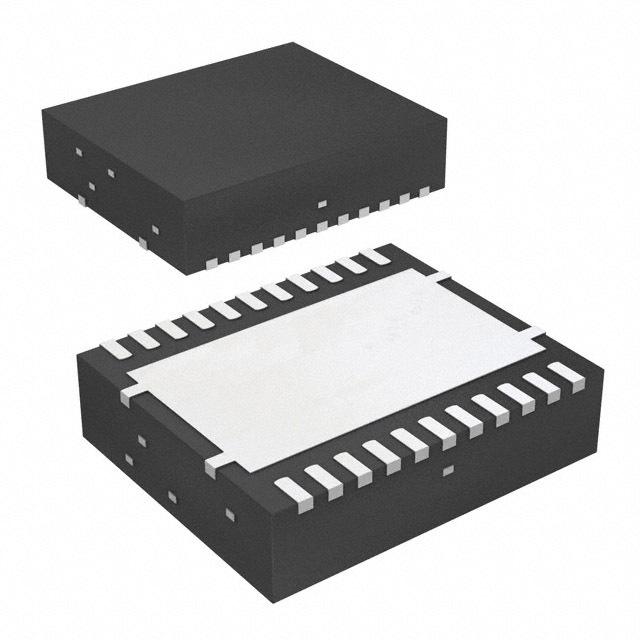

- TPS53355DQPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1444240
-
Category:DC to DC Converter
-
Package:LFDFN-22
-
Datasheet:Datasheet 3D Model
-
Description:1.5V to 15V Input (4.5V to 25V Bias), 30A Synchronous Step-Down SWIFT Converter 22-SON -40℃ to 85℃
-
Stock Locations:
-
Availability:1,154 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.96
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TPS53355 is a D-CAP mode™, 30-A synchronous switcher with integrated MOSFETs. It is designed for ease of use, low external component count, and space-conscious power systems.
- This device features 5 mΩ/2.0 mΩ integrated MOSFETs, accurate 1%, 0.6-V reference, and integrated boost switch. A sample of competitive features include: 1.5-V to 15-V wide conversion input voltage range, very low external component count, D-CAP™ mode control for super fast transient, auto-skip mode operation, internal soft-start control, selectable frequency, and no need for compensation.
- The conversion input voltage ranges from 1.5 V to 15 V, the supply voltage range is from 4.5 V to 25 V, and the output voltage range is from 0.6 V to 5.5 V.
- The device is available in 5-mm × 6-mm, 22-pin QFN package and is specified from –40°C to 85°C.
TPS53355DQPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 22 Pin |
| Case/Package | LFDFN-22 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 5.5V |
| Output Current | 30 A |
| Quiescent Current | 320 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 250kHz ~ 1MHz |
| Topology | Buck |
| Input Voltage (Max) | 15 V |
| Input Voltage (Min) | 1.5 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 30 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3 V |
| Input Voltage | 3V ~ 15V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
