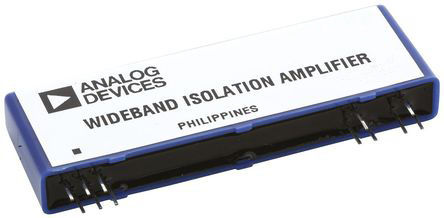

Image is for your reference only,please check specifications for details

AD215BY - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1434742
Category:
Amplifier, Buffer IC
Package:
SIP-12
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD215BY Isolation Amplifier, 1 Amplifier, 2mV, 1500Vrms, ± 14.25V to ± 17V, SIP, 12Pins
Stock Locations:
Availability:
274 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 191.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The AD215 is a high speed input isolation amplifier designed to isolate and amplify wide bandwidth analog signals. The innova tive circuit and transformer design of the AD215 ensures wide band dynamic characteristics while preserving key dc performance specifications.

Show

AD215BY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	12 Pin
Case/Package	SIP-12
Supply Current	40 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	12 Position
Common Mode Rejection Ratio	100 dB
Bandwidth	120 kHz
Slew Rate	6.00 V/μs
Isolation Voltage	1500 Vrms
Input Offset Voltage	2 mV
Input Bias Current	300 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	120 kHz
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	14.25 V
	Show
Size-Length	63 mm
Size-Width	8.3 mm
Size-Height	21.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
