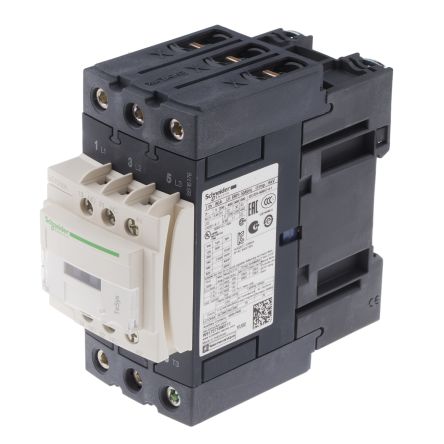

Image is for your reference only,please check specifications for details
- LC1D50AP7 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC17790631
-
Category:Industrial Relay
-
Datasheet:Datasheet 3D Model
-
Description:SCHNEIDER ELECTRIC LC1D50AP7 Contactor, 600VAC, 3Pole, 3PST-NO, DIN Rail, 230V
-
Stock Locations:
-
Availability:21 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 251.17
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Schneider Electric LC1D TeSys D Contactors**
- TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.
- ###*Features and Benefits**
- Built-in auxiliary contacts for added switching capability
- Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
- Can be panel mounted with screws or DIN Rail mounted
- Bidirectional peak limiting diode suppressor to protect the coil
- Easily installed accessories
- Flexible control circuit to suit a wide range of applications
- ###*What does the utilisation category AC1 and AC3 mean for the TeSys contactors?**
- Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
- AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
- AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
- ###*What accessories are available?**
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
- Transient voltage surge suppressors
- Interface modules and electronic timers
- Mechanical latching blocks
- ###*Is the TeSys D range a double break pole type contactor?**
- Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.
LC1D50AP7 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Operating Voltage | 600 VAC |
| Power Rating | 22 kW |
| Contacts Type | 3PST-NO |
| Contact Current Rating | 50 A |
| Coil Voltage | 230 VAC |
| Coil Voltage (AC) | 230 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -5 ℃ |
| Show | |
| Size-Length | 122 mm |
| Size-Width | 55 mm |
| Size-Height | 122 mm |
| Weight | 855 g |
| Operating Temperature | -25℃ ~ 55℃ |
| RoHS | RoHS Compliant |
