Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

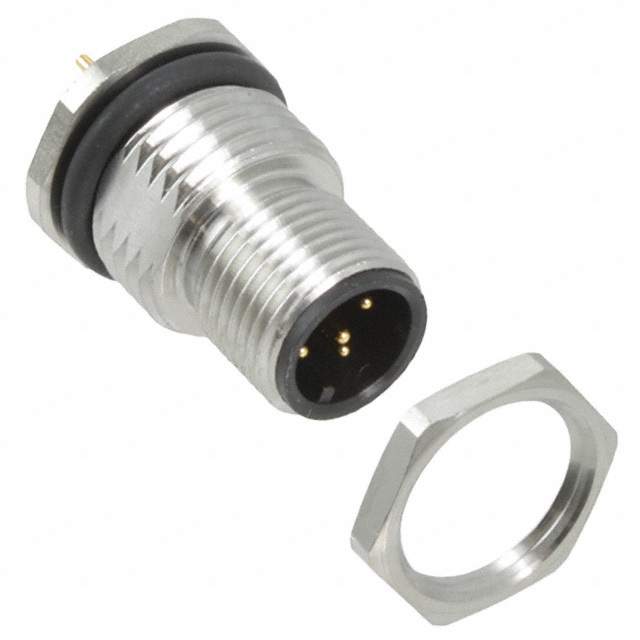

- **Phoenix Contact A-Coded M12 Flush Type Connectors. PG9**
- Phoenix Contact A-coded 5 way high grade stainless steel flush type sensor/actuator panel feed through connectors with PG9 fastening thread, M12 A-coded plug and socket connector variants, rated to IP69K with a wide operating temperature range, ideal for many M12 A-coded connector applications that require a durable and hard wearing panel mount connector.
1554746 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Contacts | 5 Contact |
| Current Rating | 4 A |
| Insulation Resistance | 100 MΩ |
| Number of Positions | 5 Position |
| Number of Mating Cycles | 100 Cycle |
| Current Rating (Max) | 4 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 60 V |
| Voltage Rating | 60 V |
| Show | |
| Size-Height | 23 mm |
| Contact Material | Brass |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694020 |
| ECCN Code | EAR99 |
