Description

Digital Logic Isolation
Line Receivers
Power Supply Feedback Control
Switching Power Supplies
Transistor Inverters

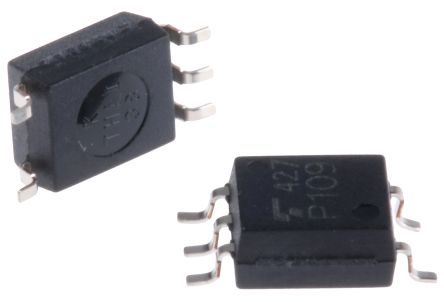

The Toshiba TLP109 mini-flat coupler is a small-outline coupler suitable for surface-mount assembly. The TLP109 consists of a high-output-power GaAℓAs light emitting diode optically coupled to a high-speed photodiode-transistor chip. The TLP109 is housed in the 6-pin SO package and guarantees acreepage distance of ≥5.0 mm, a clearance of ≥5.0 mm and an insulation thickness of ≥0.4 mm. Therefore, the TLP109 meets the reinforced insulation class requirements of international safety standards.
• Isolation voltage: 3750 Vrms (min)
• Switching speed: tpHL = 0.8 μs, tpLH= 0.8 μs (max)
(@RL = 1.9 kΩ)
• TTL-compatible

Show

TLP109 Specifications
