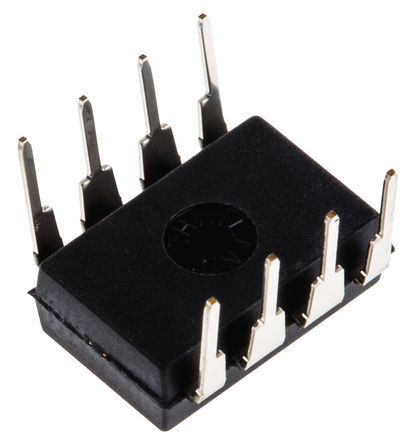

Image is for your reference only,please check specifications for details

OPA633KP - TI
Manufacturer:
TI
ManyChip's Part#:
MC6620765
Category:
Amplifier, Buffer IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA633KP Buffer Amplifier, 1 Amplifiers, 260MHz, 2500V/µs, ± 5V to ± 16V, DIP, 8Pins
Stock Locations:
Availability:
235 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 30.28

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA633KP is a high speed monolithic unity-gain Buffer Amplifier features very wide bandwidth and high slew rate. A dielectric isolation process incorporating both NPN and PNP high frequency transistors achieves performance unattainable with conventional integrated circuit technology. Laser trimming provides low input offset voltage.
1.5mV Low offset voltage
Improved performance

Show

OPA633KP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Capacitance	76.0 mF
Output Current	100 mA
Supply Current	21 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1.95 W
Bandwidth	260 MHz
Slew Rate	2.50 kV/μs
Gain Bandwidth Product	260 MHz
Input Offset Voltage	5 mV
Input Bias Current	15 µA
Available Channels	S
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	260 MHz
Gain Bandwidth	260 MHz
Supply Voltage (Max)	16 V
Supply Voltage (Min)	5 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 75℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
