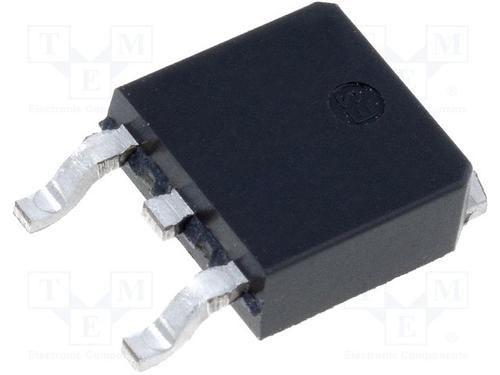

Image is for your reference only,please check specifications for details
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Description
- The AOD409 uses advanced trench technology to provide excellent RDS(ON), low gate charge and low gate resistance. With the excellent thermal resistance of the DPAK package, this device is well suited for high current load applications. Standard Product AOD409 is Pb-free (meets ROHS & Sony 259 specifications). AOD409L is a Green Product ordering option. AOD409 and AOD409L are
- electrically identical.
- Features
- VDS(V) = -60V
- ID= -26A (VGS= -10V)
- RDS(ON) < 40mΩ(VGS= -10V) @ -20A
- RDS(ON)< 55mΩ(VGS= -4.5V)
AOD409 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Power Rating | 30 W |
| Polarity | P-CH |
| Power Dissipation | 60 W |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 26A |
| Rise Time | 14.5 ns |
| Maximum Forward Voltage (Max) | 1 V |
| Input Capacitance (Ciss) | 3600pF @30V(Vds) |
| Input Power (Max) | 60 W |
| Fall Time | 15 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2.5W (Ta), 60W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
