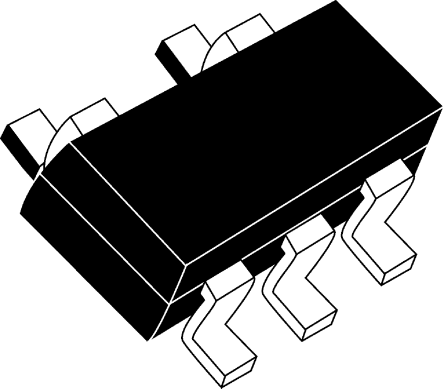

Image is for your reference only,please check specifications for details
- NCP5005SNT1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC14646903
-
Category:LED Driver, LED Display Driver
-
Package:TSOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:LED Driver, Boost (Step Up), 2.7V to 5.5V input, 1 Output, 24V/50mA out, TSOP-5
-
Stock Locations:
-
Availability:1,997 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.73
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCP5005SNT1G is a high efficiency compact backlight LED Boost Driver converter operating in current loop, based on a PFM mode and to drive white LED. The current mode regulation allows a uniform brightness of the LEDs. The chip has been optimized for small ceramic capacitors, capable to supply up to 1W output power.
- Built-in over-voltage protection
- Low EMI radiation
- Inductor based converter brings up to 90% efficiency
- Constant output current regulation
- Includes dimming function (PWM)
- Enable function driven directly from low battery voltage source
- Automatic LEDs current matching
- Thermal shutdown protection
- All pins are fully ESD protected
- ESD sensitive device, take proper precaution while handling the device.
NCP5005SNT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TSOT-23-5 |
| Frequency | 1.2 MHz |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 2.70V ~ 5.50V |
| Output Voltage | 24 V |
| Output Current | 50 mA |
| Number of Positions | 5 Position |
| Power Dissipation | 160 W |
| Switching Frequency | 1.2 MHz |
| Topology | Boost |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 24 V |
| Output Current (Max) | 50 mA |
| Input Power (Max) | 160 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 160 mW |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 2.7V ~ 5.5V |
| Show | |
| Operating Temperature | -25℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
