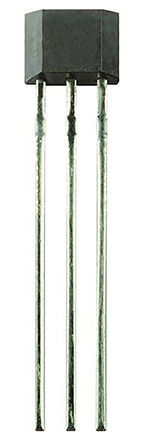

SS49E - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC395096
Category:
Hall Effect Sensor
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Magnetic Hall-Effect Sensor ICs: SS39ET/SS49E/SS59ET Series Low Cost Linear Hall-Effect Sensor IC, Energy Efficient 2.7VDC to 6.5VDC, -40° C to 100° C Temperature Range, 15mm Straight Leads, Bulk Packed (1000 per Bag)
Stock Locations:
Availability:
10,159 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SS49E is a low cost linear hall effect sensor IC in 3 pin TO-92 package. This small and versatile sensor is operated by magnetic field from permanent magnet or an electromagnet. It is designed and manufactured for cost competitiveness. The linear sourcing output voltage is set by supply voltage and varies in proportion to strength of magnetic field. Low voltage capability of 2.7VDC and reduced current consumption of only 6mA at 5VDC makes this product energy efficient. The integrated circuitry features low noise output which makes it unnecessary to use external filtering. The SS49E interfaces with many electrical components without buffering. It also includes thin film resistors to provide increased temperature stability and accuracy.
Miniature and subminiature construction
Energy efficient
Easy PC board interface
Low noise and stable output
Supply voltage range from 2.7VDC to 6.5VDC
Sensitivity of 1.4mV/gauss
Response time of 3µs
Output voltage of 1.4mV/gauss
Linearity (% of span) of 0.7%
Operating temperature range from -40°C to 100°C

Show

SS49E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	5.00 V
Output Current	1 mA
Supply Current	6 mA
Number of Positions	3 Position
Input Current	10.0 mA
Output Current (Max)	10 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 6.5V
Supply Voltage (Max)	6.5 VDC
Supply Voltage (Min)	3 VDC
	Show
Size-Height	4.1 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
HTS Code	8542390001;8542390000
ECCN Code	EAR99
