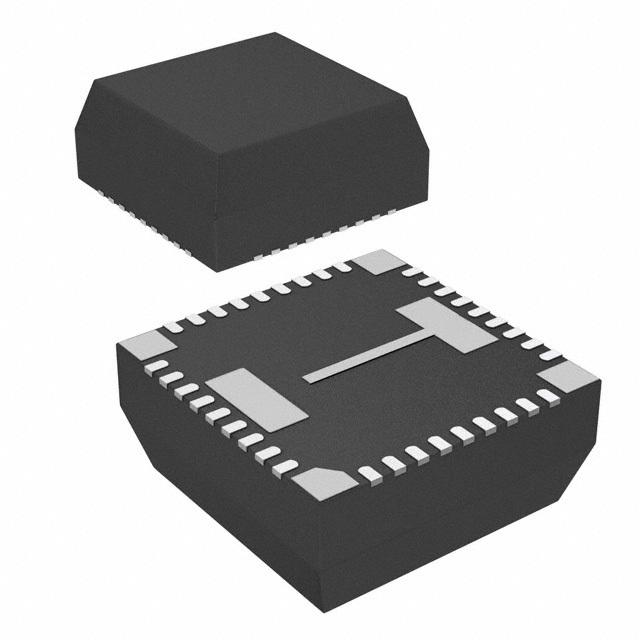

Image is for your reference only,please check specifications for details

LMZ31707RVQT - TI
Manufacturer:
TI
ManyChip's Part#:
MC4447779
Category:
DC to DC Converter
Package:
BQFN-42
Datasheet:
Datasheet 3D Model
Description:
DC-DC POL Converter, Adjustable, Buck, 1.2MHz, 2.95V to 17V in, 0.6V to 5.5V out, 7A, BQFN-42
Stock Locations:
Availability:
10,421 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 469.45

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMZ31707RVQT is a SIMPLE SWITCHER® Power Module with current sharing that combines a 7A DC/DC converter with power MOSFETs, a shielded inductor and passives into a low profile. This is an easy-to-use integrated power solution. This total power solution allows as few as three external components and eliminates the loop compensation and magnetic part selection process. It is easy to solder onto a printed circuit board and allows a compact point-of-load design. It achieves greater than 95% efficiency and excellent power dissipation capability with a thermal impedance of 13.3°C/W. The LMZ31707 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems.
Complete integrated power solution allows small footprint, low-profile design
Eco-mode/light load efficiency
Supports parallel operation for higher current
Synchronizes to an external clock
Adjustable slow-start
Output voltage sequencing/tracking
Power good output
Programmable undervoltage lockout
Overcurrent and over temperature protection
Pre-bias output start-up
Adjustable switching frequency
Meets EN55022 class B emissions - Integrated shielded inductor
Wide-output voltage adjust - 0.6 to 5.5V with 1% reference accuracy
Green product and no Sb/Br

Show

LMZ31707RVQT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	42 Pin
Case/Package	BQFN-42
Number of Outputs	1 Output
Output Voltage	0.6V ~ 5.5V
Output Current	7 A
Number of Positions	42 Position
Number of Regulated Outputs	1 Output
Switching Frequency	1.2 MHz
Topology	Buck
Input Voltage (Max)	17 V
Input Voltage (Min)	2.95 V
Input Voltage (DC Max)	17 V
Input Voltage (DC Min)	2.95 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	600 mV
Output Current (Max)	7 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.95V ~ 17V
	Show
Size-Width	10.15 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
