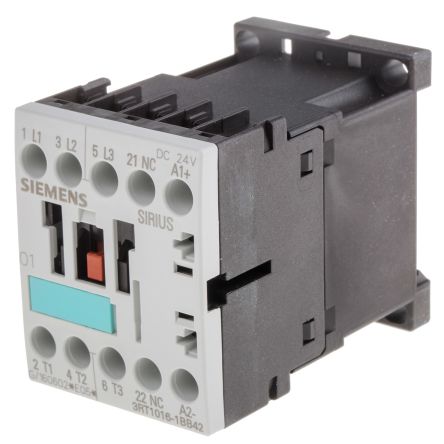

Image is for your reference only,please check specifications for details

3RT10161BB42 - Siemens Semiconductor
Manufacturer:
Siemens Semiconductor
ManyChip's Part#:
MC118025244
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
Contactor, Non-Reversing, 24VDC Coil, 9A, 3Pole, S00, DIN Rail, Screw, SIRIUS
Stock Locations:
Availability:
107 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 67.81

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 3RT10161BB42 is a DIN-rail Mount Contactor with 3PST-NC contact and screw type electrical connection.
-25 to 60°C Ambient temperature range

Show

3RT10161BB42 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail, DIN Panel
Supply Voltage (DC)	24.0 V
Operating Voltage	690 V
Current Rating	9 A
Contacts Type	3PST
Contact Current Rating	9 A
Coil Voltage	24 VDC
Coil Voltage (AC)	24.0 V
Coil Power (DC)	26.5 W
Coil Power (AC)	3.30 W
Coil Voltage (DC)	24 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-25 ℃
	Show
Size-Length	57.5 mm
Size-Width	45 mm
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
