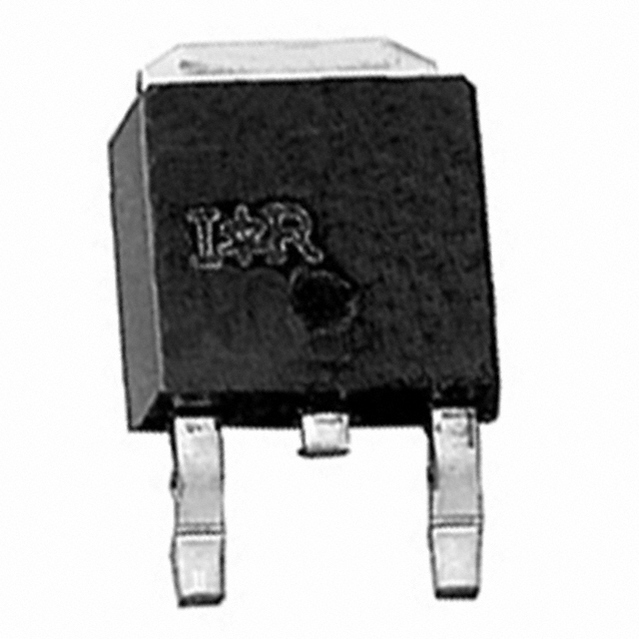

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications.
• Ultra Low On-Resistance
• Surface Mount (IRFR1205)
• Straight Lead (IRFU1205)
• Fast Switching
• Fully Avalanche Rated

Show

IRFR1205 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252
Voltage Rating (DC)	55.0 V
Current Rating	37.0 A
Polarity	N-Channel
Power Dissipation	69.0 W
Part Family	IRFR1205
Drain to Source Voltage (Vds)	55.0 V
Breakdown Voltage (Drain to Source)	55.0 V
Continuous Drain Current (Ids)	44.0 A
Rise Time	69.0 ns
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
