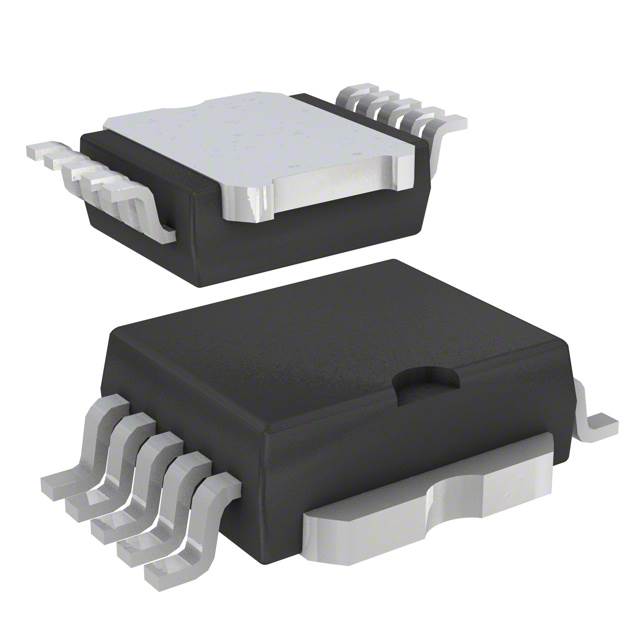

Image is for your reference only,please check specifications for details

VNQ660SP - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC150746037
Category:
Switching Power Supply, Power Switch
Package:
PowerSO-10
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 4Out 6A 0.04Ω Automotive 12Pin(10+2Tab) PowerSO Tube
Stock Locations:
Availability:
303 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.47

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The VNQ660SP is a monolithic device made by using| STMicroelectronics VIPower M0-3 Technology, intended for driving resistive or inductive loads with one side connected to ground.
This device has four independent channels. Built in thermal shutdown and output current limitation protect the chip from over temperature and short circuit.
Features
■ CMOS compatible inputs
■ Off state open load detection
■ Undervoltage and overvoltage shutdown
■ Overvoltage clamp
■ Thermal shutdown
■ Current limitation
■ Very low standby power dissipation
■ Protection against loss of ground and loss of VCC
■ Reverse battery protection(a)

Show

VNQ660SP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	PowerSO-10
Supply Voltage (DC)	36.0V (max)
Voltage Rating (DC)	36.0 V
Number of Outputs	4 Output
Output Current	6 A
Supply Current	40.0 mA
Number of Channels	4 Channel
Drain to Source Resistance (on) (Rds)	130 mΩ
Power Dissipation	113600 mW
Drain to Source Voltage (Vds)	41.0 V
Continuous Drain Current (Ids)	18.0 mA
Output Current (Max)	6 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	40 ℃
Supply Voltage	6V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	5.5 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
