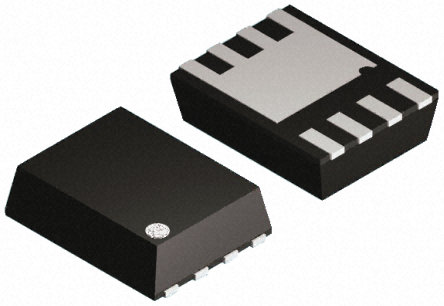

Image is for your reference only,please check specifications for details

FDMS86200 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7105342
Category:
MOSFET, MOSFET Transistor
Package:
DualCool-56-8
Datasheet:
Datasheet 3D Model
Description:
Power Field-Effect Transistor, 9.6A I(D), 150V, 0.018Ω, 1Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, MO-240AA, ROHS COMPLIANT, POWER 56, 8Pin
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDMS86200 is a N-channel MOSFET is produced using Fairchild Semiconductor"s advanced PowerTrench® process. It has been especially tailored to minimize the ON-state resistance and yet maintain superior switching performance.
Shielded gate MOSFET technology
Advanced package and silicon combination for low RDS (ON) and high efficiency
MSL1 Robust package design
100% UIL tested

Show

FDMS86200 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DualCool-56-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.015 Ω
Polarity	N-Channel
Power Dissipation	104 W
Threshold Voltage	2.5 V
Drain to Source Voltage (Vds)	150 V
Continuous Drain Current (Ids)	9.6A
Rise Time	7.9 ns
Input Capacitance (Ciss)	2715pF @75V(Vds)
Input Power (Max)	2.5 W
Fall Time	5.8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta), 104W (Tc)
	Show
Size-Length	5 mm
Size-Width	6 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
