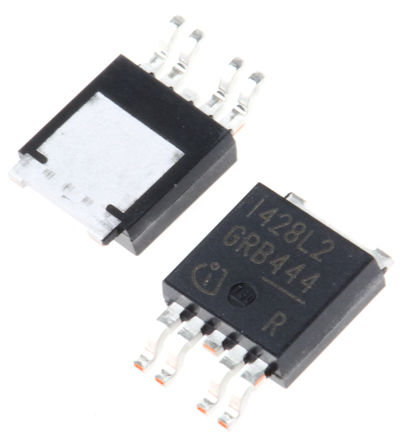

Image is for your reference only,please check specifications for details

ITS428L2 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC9938342
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
TO-252-5
Datasheet:
Datasheet 3D Model
Description:
Infineon ITS428L2 Intelligent Power Switch, High Side, 7A, -10 → 16V, 5Pin, TO-252
Stock Locations:
Availability:
299 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.87

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ITS428L2 is a 1-output high-side vertical power MOSFET Switch with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. It provides embedded protection functions and overvoltage protection (including load dump) with external resistor.
Very low standby current
Improved electromagnetic compatibility
Fast demagnetization of inductive loads
Stable behaviour at under-voltage
Wide operating voltage range
Logic ground independent from load ground
Short-circuit protection
Overload protection
Current limitation
Thermal shutdown
Reverse battery protection with external resistor
Loss of ground and loss of VBB protection
ESD sensitive device, take proper precaution while handling the device.

Show

ITS428L2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Number of Outputs	1 Output
Input Voltage (DC)	41.0 V
Output Current	5.8 A
Supply Current	0.8 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	75 W
Output Current (Max)	5.8 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Supply Voltage	4.75.43 VDC
Supply Voltage (Max)	41 V
Supply Voltage (Min)	4.75 V
Input Voltage	41 V
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-30℃ ~ 85℃ (TA)
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
