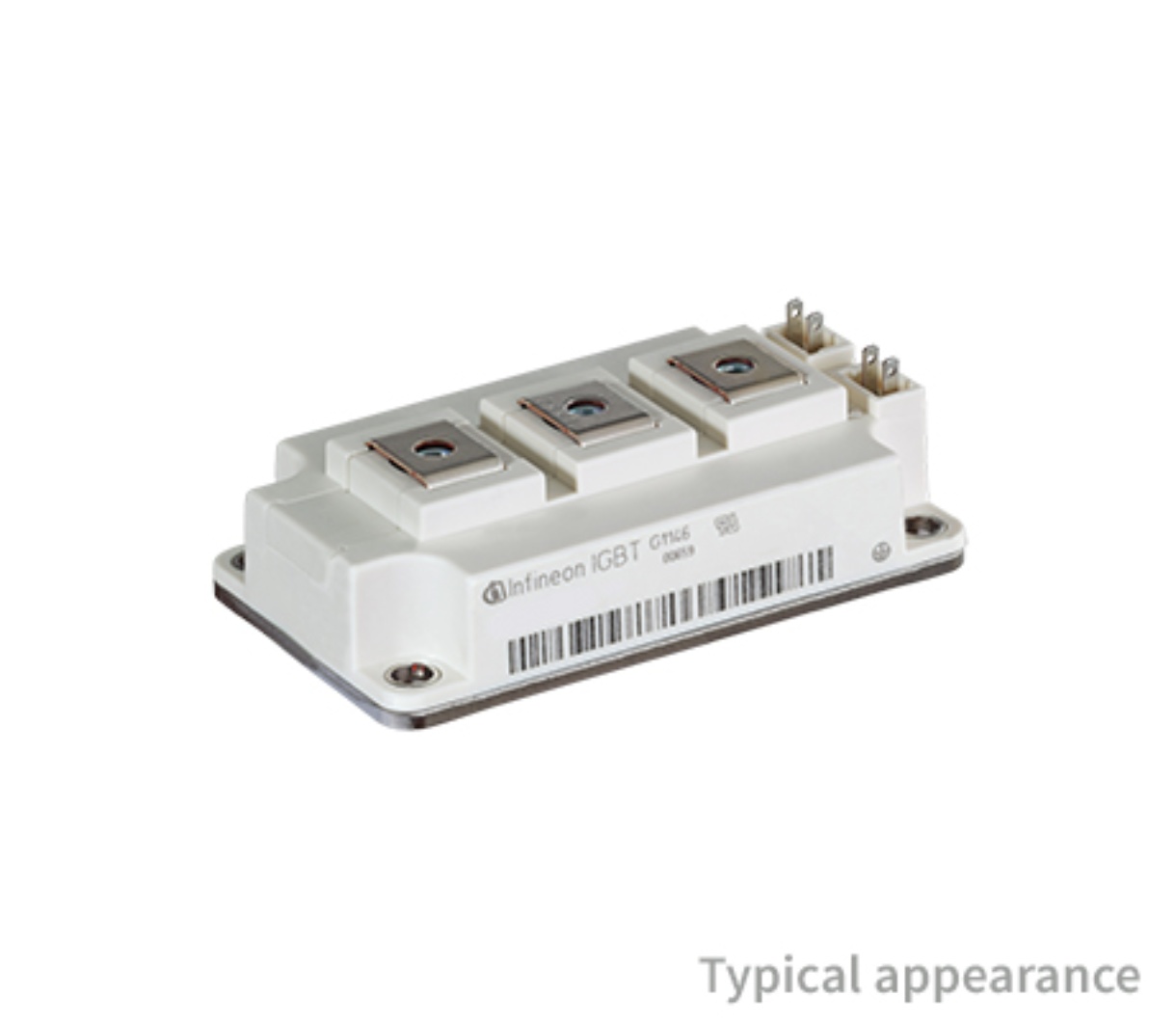

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

62mm C-series module with trench/fieldstop IGBT3 and EmCon High Efficiency diode

Show

FF400R12KE3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	7 Pin
Case/Package	AG-62MM-1
Power Rating	2000 W
Breakdown Voltage (Collector to Emitter)	1200 V
Input Capacitance (Cies)	28nF @25V
Input Power (Max)	2000 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2 kW
	Show
Size-Length	106.4 mm
Size-Width	61.4 mm
Size-Height	30.9 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
