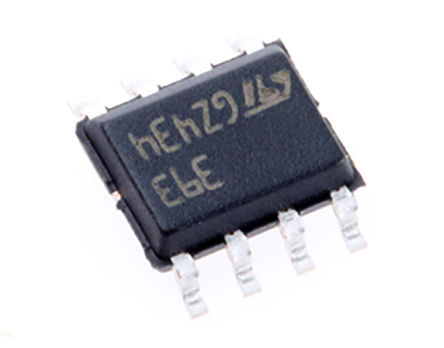

Image is for your reference only,please check specifications for details

LM393DT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC34683
Category:
Comparator, Analog Comparator IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LM393DT Analog Comparator, Dual, Voltage, 2, 1.3µs, 2V to 36V, SOIC, 8Pins
Stock Locations:
Availability:
1,926,801 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM393DT is a low power Dual Voltage Comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. It also has a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
Very low supply current (0.45mA) independent of supply voltage (1mW/comparator at +5V)
20nA Typical low input bias current
±3nA Typical low input offset current
±1mV Typical low input offset voltage
Input common-mode voltage range includes ground
80mV Typical (I sink=4mA) low output saturation voltage
Differential input voltage range equal to supply voltage

Show

LM393DT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	2.00V (min)
Operating Voltage	2V ~ 36V
Output Current	18mA @5V
Supply Current	1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Quiescent Current	400 µA
Thermal Resistance	125 ℃/W
Input Offset Voltage	5 mV
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	2V ~ 36V
	Show
Size-Length	4.9 mm
Size-Width	3.9 mm
Size-Height	1.25 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
