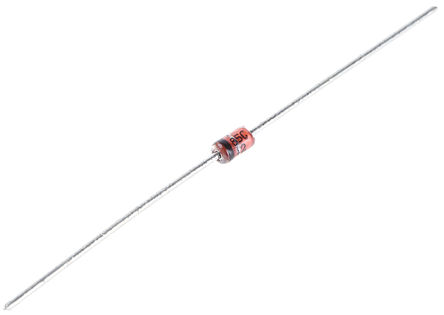

Image is for your reference only,please check specifications for details

BZX85C12 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC8871559
Category:
Zener Diode, Zener
Package:
DO-41-2
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR BZX85C12 Zener Single Diode, 12V, 1W, DO-41, 5%, 2Pins, 200℃
Stock Locations:
Availability:
3,510 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BZX85-C12 is a Zener Diode with glass case. This product is general usage and suitable for many different applications.

Show

BZX85C12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-41-2
Voltage Rating (DC)	12.0 V
Capacitance Tolerance	±5 %
Power Rating	1.00 W
Breakdown Voltage	12.0 V
Number of Positions	2 Position
Forward Voltage	1.2V @200mA
Power Dissipation	1 W
Test Current	20 mA
Zener Voltage	12 V
Maximum Forward Voltage (Max)	1.2V @200mA
Input Power (Max)	1 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1 W
	Show
Size-Length	5.2 mm
Size-Width	2.72 mm
Size-Height	2.72 mm
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
