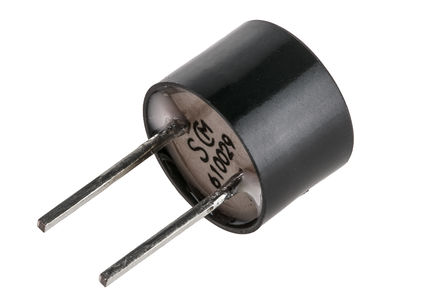

Image is for your reference only,please check specifications for details

MA40S4S - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC6928200
Category:
Motion Sensor
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Ultrasonic Sensor, 200mm Min, 4000mm Max, Cylindrical, Through Hole Mount
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MA40S4S from Murata is an open structure ultrasonic sensor. Ultrasonic sensor features a composite oscillating body combining the oscillator which joins a metal plate and piezoelectric ceramics with a resonator. The body is elastically fixed to the base and housed in a case. The resonator is shaped like a funnel to efficiently radiate the ultrasonic waves generated by the oscillating body into the air and to effectively concentrate ultrasonic waves from the air on centre of the oscillator. Sound pressure is the most important parameter of open structure ultrasonic sensors. In distance measurement applications, the higher the sound pressure of the ultrasonic sensor, the longer the sensor range.
10mm size diameter
Transmitter for dual use type
Nominal frequency is 40KHz
Operating temperature range from -40°C to 85°C
Sensitivity is typically -63dB
Sound Pressure is 120dB
Directivity is 80°
Capacitance is 2550pF
Detectable range upto 4m
Allowable input voltage is 20Vpp at 40KHz

Show

MA40S4S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	-
Frequency	40 kHz
Voltage Rating (DC)	20.0 V
Resonant Frequency	40.0 kHz
Switching Frequency	40 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	20 V
Supply Voltage	20 V
Supply Voltage (Max)	16 VDC
	Show
Size-Length	7.1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	Contains SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
