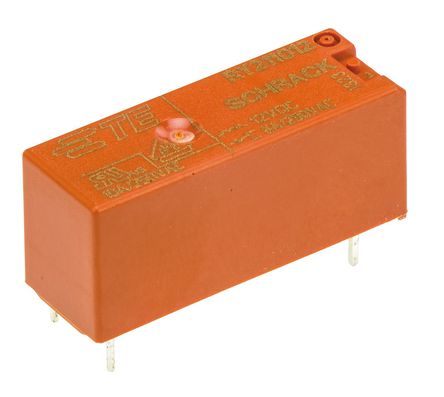

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Power Relay 12VDC 8A SPDT( (28.5mm 10.1mm 12.3mm)) THT
- Product Highlights
- RYII Series
- Contact Arrangement = 1 Form C, SPDT, 1 C/O
- Contact Current Rating = 8 Amps.
- Monostable Coil Magnetic System
- Without Coil Suppression Diode
RY211012 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 1 Pin |
| Case/Package | - |
| Input Voltage (DC) | 12.0 V |
| Contacts Type | SPDT |
| Power Consumption | 220 mW |
| Contact Current Rating | 8.00 A |
| Coil Voltage | 12 VDC |
| Coil Current | 19.14 mA |
| Coil Power (DC) | 220 mW |
| Coil Resistance | 627 Ω |
| Current Rating (Max) | 8 A |
| Coil Voltage (DC) | 12 V |
| Input Power (Max) | 2 KVA |
| Switching Current (Max) | 8 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 12 VDC |
| Show | |
| Size-Length | 28.5 mm |
| Size-Width | 12.3 mm |
| Size-Height | 12.3 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
