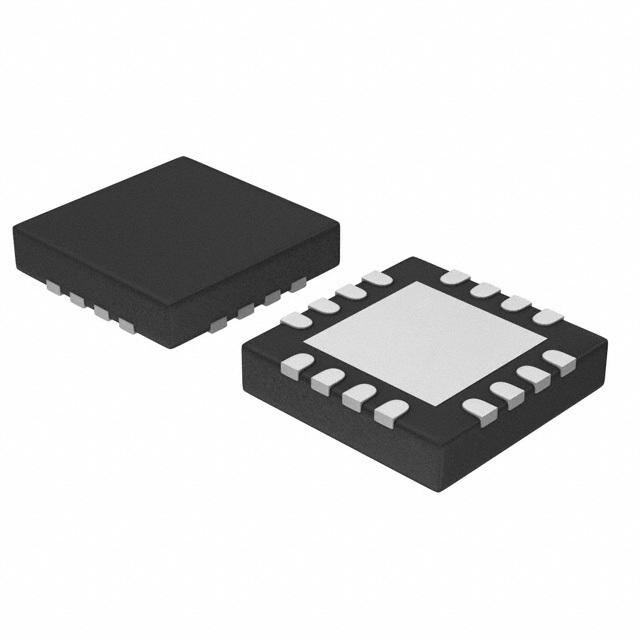

Image is for your reference only,please check specifications for details
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Сведения о продукте
- HMC425ALP3E — это широкополосные 6-битные цифровые аттенюаторы на GaAs ИС в недорогих безвыводных корпусах для поверхностного монтажа. В диапазоне от 2,2 ГГц до 8,0 ГГц вносимые потери составляют менее 4,5 дБ (типично). Значения разрядов аттенюатора: 0,5 (младший разряд), 1, 2, 4, 8 и 16 дБ, что обеспечивает общее ослабление 31,5 дБ. Точность ослабления отличная: типичная ошибка шага ± 0,5 дБ при IIP3 +40 дБм. Шесть входов управляющего напряжения, переключаемых между 0 и от +3 до +5 В, используются для выбора каждого состояния ослабления. Требуется однополярное питание VDD от +3 до +5 В.
- Применение
- Беспроводные локальные сети и соединения точка-многоточка
- Волоконная оптика и широкополосная связь
- Микроволновое радио и VSAT
- Военная техника
- ### Особенности и преимущества
- Шаги 0,5 дБ (младший разряд) до 31,5 дБ
- Одна линия управления на каждый разряд
- Типичная ошибка разряда ± 0,5 дБ
- Питание от одного источника +5 В
- Корпус SMT 3×3 мм
HMC425ALP3E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 16 Pin |
| Case/Package | LFCSP EP-16 |
| Number of Bits | 6 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Product Lifecycle Status | Pre-Release |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
