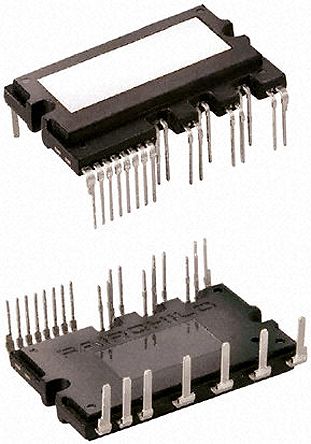

FSBB20CH60 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC41461346
Category:
IGBT Transistor, IGBT Module
Package:
SPM27-CA
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FSBB20CH60 IGBT Array & Module Transistor, N Channel, 20A, 600V, 61W, 600V, Module
Stock Locations:
Availability:
129 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.89

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FSBB20CH60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM27-CA
Supply Voltage (DC)	400V (max)
Number of Outputs	1 Output
Output Current	20 A
Polarity	N-Channel
Power Dissipation	61 W
Isolation Voltage	2500 Vrms
Breakdown Voltage (Collector to Emitter)	600 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	13.5V ~ 16.5V
	Show
Size-Length	44.2 mm
Size-Width	27 mm
Size-Height	5.5 mm
Operating Temperature	-20℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
