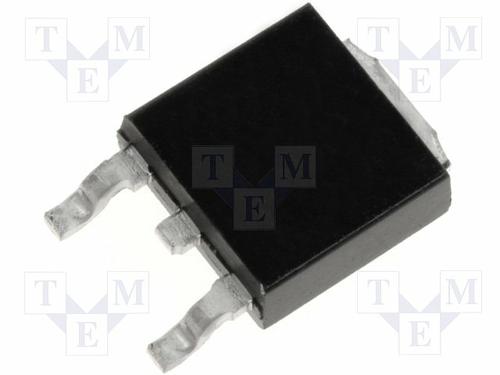

Image is for your reference only,please check specifications for details

UA79M05CKVURG3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC10574400
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UA79M05CKVURG3 Linear Voltage Regulator, 7905, Fixed, -25V To -7V In, -5V And 0.5A Out, TO-252-3
Stock Locations:
Availability:
281 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.3

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UA79M05CKVURG3 is a fixed Negative-Voltage Regulator designed to complement the µA78M00 series in a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. This regulator delivers up to 500mA of output current. The internal current-limiting and thermal-shutdown features of this regulator make it essentially immune to overload. In addition to use as fixed-voltage regulator, this device can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulator.
No external components
High power-dissipation capability
Internal short-circuit current limiting
Output transistor safe-area compensation
Green product and no Sb/Br

Show

UA79M05CKVURG3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Input Voltage (DC)	-25.0 V (max)
Output Voltage	-5.00 V (max), -4.80 V (min)
Output Current	500 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Quiescent Current	1.00 mA
Output Capacitor Type	Capacitor Free
voltage rating	1.1V @350mA
Number of Regulated Outputs	1 Output
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
	Show
Size-Width	6.1 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
