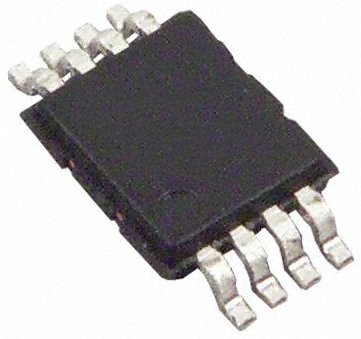

Image is for your reference only,please check specifications for details

TS3022IST - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC10294150
Category:
Comparator, Analog Comparator IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TS3022 Series Dual 5.5V 160nA SMT Rail-to-Rail High-Speed Comparator - MSOP-8
Stock Locations:
Availability:
10,138 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.61

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3022IST is a dual Comparator features a high-speed response time with rail-to-rail inputs. With a supply voltage specified from 2 to 5V, this comparator can operate over a wide temperature range. The TS3022 comparator offers micro-power consumption as low as a few tens of microamperes thus providing an excellent ratio of power consumption current versus response time.
Push-pull outputs
5kV HBM, 300V MM High ESD tolerance
200mA Latch-up immunity

Show

TS3022IST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Current	0.23 mA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Power Dissipation	650 W
Common Mode Rejection Ratio	79 dB
Quiescent Current	89 µA
Thermal Resistance	190 ℃/W
Input Offset Voltage	8 mV
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 5V
	Show
Size-Length	3.2 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
