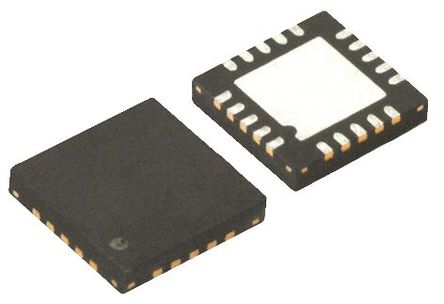

Image is for your reference only,please check specifications for details

TS3A5018RSVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC5676462
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
UQFN-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS3A5018RSVR Analogue Switch, Quad Channel, SPDT, 4Channels, 10Ω, 1.65V to 3.6V, UQFN, 16Pins
Stock Locations:
Availability:
3,342 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3A5018RSVR is a single-pole double-throw (SPDT) quad Analog Switch designed to operate from 1.8 to 3.6V. This device can handle digital and analog signals and signals up to V+ can be transmitted in either direction.
Low on-state resistance
Low charge injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
ESD performance tested per JESD 22
Latch-up performance exceeds 100mA Per JESD 78, Class II
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TS3A5018RSVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	UQFN-16
Supply Voltage (DC)	-500 mV to 4.60 V
Number of Outputs	8 Output
Supply Current	2.5 μA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Voltage Nodes	2.50 V, 3.00 V, 3.30 V
Bandwidth	300 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	300 MHz
Supply Voltage	1.65V ~ 3.6V
	Show
Size-Length	2.65 mm
Size-Width	1.85 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
