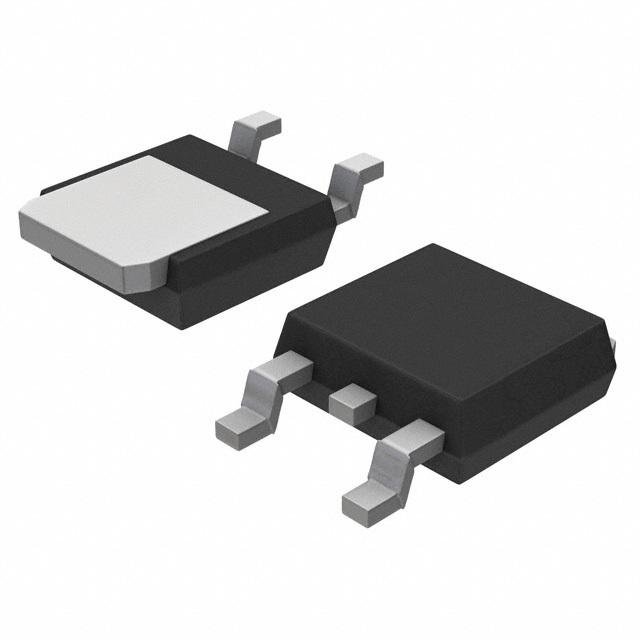

Image is for your reference only,please check specifications for details

MC33269DTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5647161
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
LDO Voltage Regulator, Adjustable, 20V in, 1.1V drop., 10V/800mA out, TO-252-3
Stock Locations:
Availability:
2,340 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC33269DTG is a low-dropout medium current adjustable Positive Voltage Regulator specifically designed for use in low input voltage applications. This device offers the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum. The regulator consists of a 1V dropout composite PNP-NPN pass transistor, current limiting and thermal shutdown.
Thermal protection
Short circuit protection
Output trimmed to 1% tolerance

Show

MC33269DTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Current Rating	800 mA
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	≤10.0 V
Output Current	800 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	5.5 mA
voltage rating	1.1 V
Input Voltage (Max)	20 V
Output Voltage (Max)	10 V
Output Voltage (Min)	1.25 V
Output Current (Max)	0.8 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	20 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
