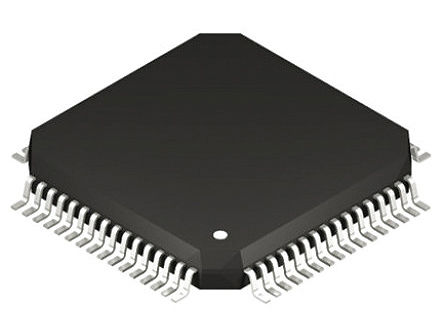

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The microcontroller provides the power of the C28x core and Control Law Accelerator (CLA) coupled with highly integrated control peripherals in low pin-count devices. An internal voltage regulator allows for single rail operation. Enhancements have been made to the HRPWM module to allow for dual-edge control (frequency modulation). Analogue comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead/latency.
High-Efficiency 32-Bit CPU ( TMS320C28x™)
Programmable Control Law Accelerator (CLA)
Endianness: Little Endian
Low Device and System Cost
Clocking
Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
Three 32-Bit CPU Timers
Independent 16-Bit Timer in Each ePWM Module
On-Chip Memory
128-Bit Security Key/Lock
Serial Port Peripherals
Advanced Emulation Features

Show

TMS320F28035PAGS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Frequency	60 MHz
Supply Voltage (DC)	1.71V (min)
Number of Positions	64 Position
Clock Speed	60.0 MHz
RAM Memory Size	20 KB
Number of Bits	32 Bit
FLASH Memory Size	128 kB
Number of UARTs	1 UART
Number of ADCs	1 ADC
Number of Inputs and Outputs	33 Input IO
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	1.995 V
Supply Voltage (Min)	1.71 V
	Show
Size-Length	10.2 mm
Size-Width	10.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
