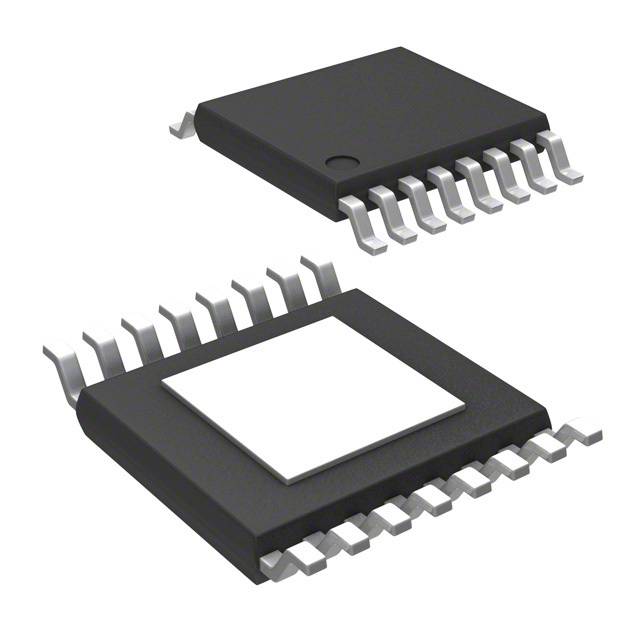

Image is for your reference only,please check specifications for details

TPS2H160BQPWPRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC76825321
Category:
Switching Power Supply, Power Switch
Package:
HTSSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS2H160BQPWPRQ1 Power Load Distribution Switch IC, Active High, 2Outputs, 40V in, 15A, 0.155Ω, HTSSOP-16 New
Stock Locations:
Availability:
1,783 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 153.29

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS2H160-Q1 family is a fully-protected dual-channel smart high-side switch, with integrated 160-mΩ NMOS power FETs.
Full diagnostics and high-accuracy current-sense features enable intelligent control of the load.
An external adjustable current limit improves reliability of the whole system by limiting the inrush or overload current.

Show

TPS2H160BQPWPRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Number of Outputs	2 Output
Input Voltage (DC)	40.0 V
Output Current	2.5 A
Supply Current	7 mA
Number of Positions	16 Position
Output Current (Max)	2.5 A
Output Current (Min)	0 A
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	40 V
	Show
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
