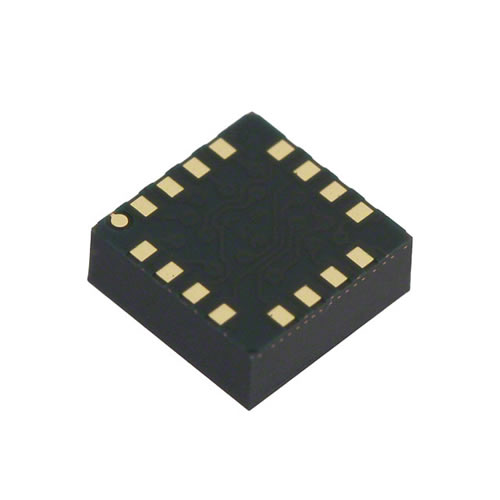

Image is for your reference only,please check specifications for details

LIS344ALH - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9159710
Category:
Acceleration Sensor
Package:
LFLGA-16
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LIS344ALH MEMS Accelerometer, 3-Axis, Analogue, X, Y, Z, 2g, 6g, LGA, 3.6V, 2.4V
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.65

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LIS344ALH is a low-power 3-Axis Linear Accelerometer which includes a sensing element and an IC interface able to take the information from the sensing element and to provide an analogue signal to the external world. The sensing element, capable of detecting the acceleration, is manufactured using a dedicated process developed by ST to produce inertial sensors and actuators in silicon. The IC interface is manufactured using an ST proprietary CMOS process with high level of integration. The dedicated circuit is trimmed to better match the sensing element characteristics. It is capable of measuring accelerations over a maximum bandwidth of 1.8kHz for all axes. The device bandwidth may be reduced by using external capacitances. The self-test capability allows the user to check the functioning of the system.
±2g/±6g Dynamically selectable full-scale
Output voltage, offset and sensitivity are ratiometric to the supply voltage
Factory trimmed device sensitivity and offset
High shock survivability (10000g)

Show

LIS344ALH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	LFLGA-16
Supply Voltage (DC)	2.40V (min)
Supply Current	680 µA
Number of Positions	16 Position
Bandwidth	2 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.4V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.4 V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
