FQPF10N60C Fairchild Semiconductor - MOSFETs

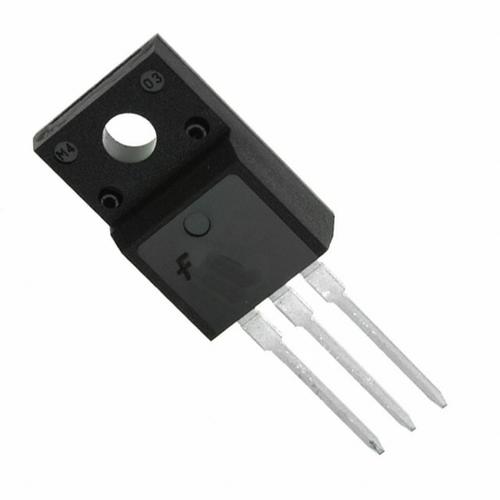

Image is for your reference only,please check specifications for details

FQPF10N60C - Fairchild Semiconductor
Manufacturer:
Fairchild Semiconductor
ManyChip's Part#:
MC63163818
Category:
MOSFETs
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Потенциальный полевой транзистор, 9,5 А I(D), 600 В, 0,73 Ом, 1 элемент, N-канал, кремний, полупроводниковый FET из оксида металла, TO-220AB, БЕЗ СВИНЦА, TO-220F, 3 контакта
Stock Locations:
Availability:
10,001 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.14

Updated at 01/11/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FQPF10N60C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	600 V
Current Rating	9.50 A
Drain to Source Resistance (on) (Rds)	730 mΩ
Polarity	N-Channel
Power Dissipation	50 W
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	9.50 A
Input Capacitance (Ciss)	2040pF @25V(Vds)
Rating Power (Max)	50 W
Power Dissipation (Max)	50W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
