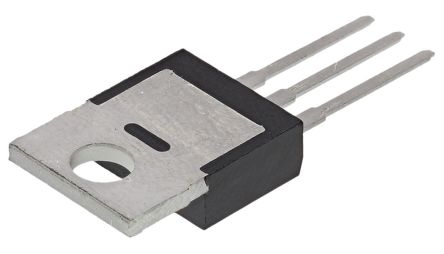

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The IRFZ34PBF is a third generation N-channel enhancement-mode Power MOSFET comes with the best combination of fast switching, ruggedized device design and low ON-resistance. The package is universally preferred for power dissipation levels to approximately 50W. The low thermal resistance of the package contributes to its wide acceptance throughout the industry.
IRFZ34PBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.05 Ω |
| Polarity | N-Channel |
| Power Dissipation | 88 W |
| Threshold Voltage | 4 V |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 30.0 A |
| Rise Time | 100 ns |
| Input Capacitance (Ciss) | 1200pF @25V(Vds) |
| Input Power (Max) | 88 W |
| Fall Time | 52 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 88W (Tc) |
| Show | |
| Size-Length | 10.41 mm |
| Size-Width | 4.7 mm |
| Size-Height | 9.01 mm |
| Operating Temperature | -55℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Minimum Packing Quantity | 50 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
