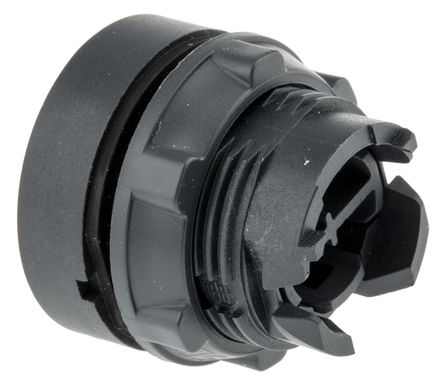

Image is for your reference only,please check specifications for details

ZB5AA3 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC18382929
Category:
Switch Accessory
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC ZB5AA3 Switch Actuator, Green, Schneider Harmony XB5 22mm Push Button Switches, IP66, NEMA 4X, NEMA 13
Stock Locations:
Availability:
68 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.24

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZB5AA3 is a Pushbutton Head, round signalling unit head, suitable for XB5 series momentary non-illuminated pushbutton switches. Plastic bezel, spring return operator.
Green flush unmarked operator profile
5000000 Cycles mechanical durability
TH Protective treatment
5gn (f = 2 to 500Hz) Conforming to IEC 60068-2-6 vibration resistance

Show

ZB5AA3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Actuator Type	Button
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
	Show
Color	Green
Housing Material	Plastic
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
