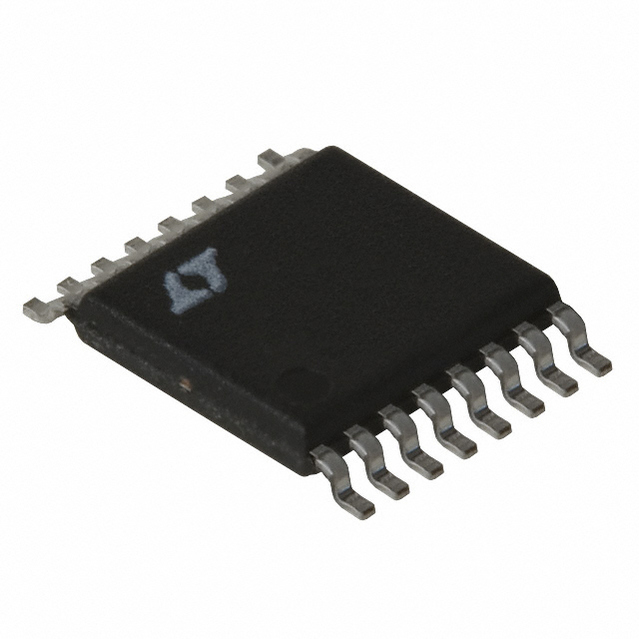

Image is for your reference only,please check specifications for details

LT3439EFE - Linear Technology
Manufacturer:
Linear Technology
ManyChip's Part#:
MC247797067
Category:
DC to DC Converter
Package:
TSSOP
Datasheet:
Datasheet 3D Model
Description:
LT3439 - Slew Rate Controlled Ultralow Noise 1A Isolated DC-DC Transformer Driver
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The LT® 3439 is a push-pull DC/DC transformer driver that reduces conducted and radiated electromagnetic interfer ence (EMI). Ultralow noise and EMI are achieved by controlling the output switch voltage and current slew rates. Slew rates are user adjustable to optimize output noise versus efficiency. The LT3439 can reduce high
frequency harmonic content by as much as 40dB with only a minor decrease in efficiency.
FEATURES
■ Reduced Conducted and Radiated EMI
■ Single Resistor Control of Output Switch Voltage and Current Slew Rates
■ Cross Conduction Prevention Circuitry
■ Two 1A Current Limited Power Switches
■ Low Minimum Supply Voltage: 2.8V
■ Low Shutdown Current: < 20µA
■ 50% Duty Cycle
■ 20kHz to 250kHz Oscillator Frequency
■ Synchronizable to 300kHz
■ Overcurrent and Overtemperature Protected
APPLICATIONS
■ Low Noise Isolated Supplies
■ Radio and Telecom Supplies
■ Distributed Supplies
■ Medical Instruments
■ Precision Instruments
■ Low Noise Filament Supplies
