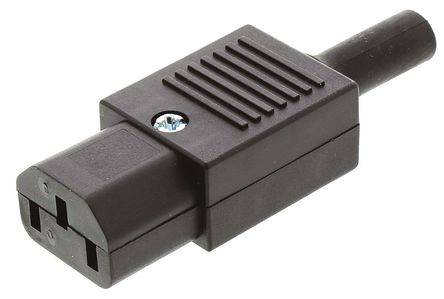

Image is for your reference only,please check specifications for details

PX0587 - Bulgin Components
Manufacturer:
Bulgin Components
ManyChip's Part#:
MC1179500
Category:
Power Entry Module
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Mains Power Connector, 10A, 250VAC, Female, Screw Terminal, Socket, ROHS COMPLIANT
Stock Locations:
Availability:
227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.55

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PX0587 from Bulgin is a rewirable IEC power inlet with cable mounting. This EN60320-1 standard sheet C13 IEC inlet connector has electrical rating up to 10A, 250VAC offer solutions to most mains powered equipment and cable applications. Conforms to IEC and EN 60320 specifications carrying UL, CSA, VDE approvals. It mates with PX0575, PX0579, PX0580, PF0001, PF0011, PF0030, PF0033 series Bulgin connectors.
Straight female connector
Screw terminals
Black colour IEC inlet
Contact resistance is 10mohm
Brass contacts
Operating temperature range from -40°C to 70°C
AC breakdown voltage is 4.5KV (pole to pole) and 4KV (poles to panel)

Show

PX0587 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Case/Package	-
Number of Contacts	3 Contact
Gender	Female
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	10 A
Insulation Resistance	1000 MΩ
Orientation	Straight
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Current Rating (Max)	10 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	250 VAC
Voltage Rating	250 VAC
Maximum Contact Resistance (Max)	10 mΩ
	Show
Size-Length	26.4 mm
Size-Width	79 mm
Size-Height	18.4 mm
Color	Black
Contact Material	Brass
Operating Temperature	-40℃ ~ 70℃
Housing Material	Nylon
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694050
ECCN Code	EAR99
