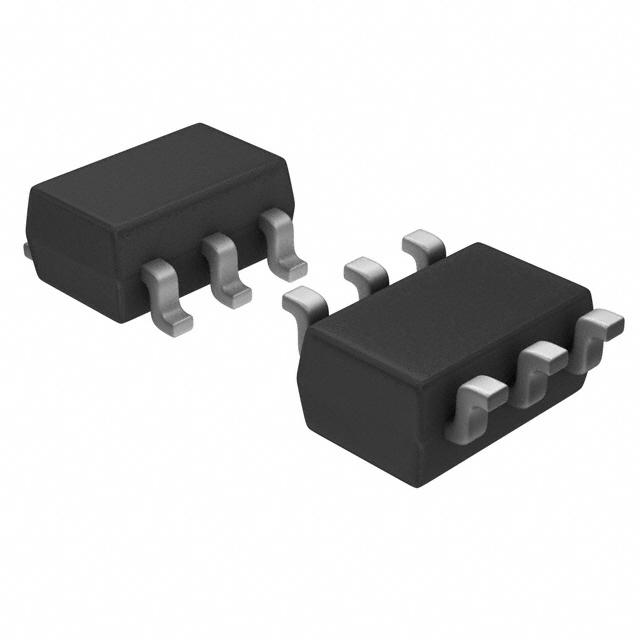

Image is for your reference only,please check specifications for details
- OPA695IDBVTG4 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC31586903
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOT-23-6
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS OPA695IDBVTG4 Operational Amplifier, Single, 1 Amplifier, 1.7GHz, 4300V/µs, 5V to 12V, SOT-23, 6Pins
-
Stock Locations:
-
Availability:310 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.47
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA695IDBVTG4 is an ultra-wideband current-feedback Operational Amplifier with disable function. The high bandwidth current-feedback operational amplifier that combines an exceptional 4300V/µs slew rate and a low input voltage noise to deliver a precision, high dynamic range intermediate frequency (IF) amplifier. Optimized for high gain operation, the OPA695 is ideally suited to buffering surface acoustic wave (SAW) filters in an IF strip or delivering high output power at low distortion for cable-modem upstream line drivers. At lower gains, a higher bandwidth of 1400MHz is achievable, making the OPA695 an excellent video line driver for supporting high-resolution RGB applications. The OPA695 low 12.9mA supply current is precisely trimmed at +25°C. This trim, along with a low temperature drift, gives low system power over temperature. System power may be further reduced using the optional disable control pin. Leaving this pin open or holding it High, gives normal operation.
- ±4.2V Output voltage swing
- >40dBm (f<50MHz) 3rd-order intercept
- 129mW Low power
- 0.5mW Low disabled power
- 56dB Typical CMRR
- 15µV/°C Typical offset drift
- Green product and no Sb/Br
OPA695IDBVTG4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-23-6 |
| Supply Voltage (DC) | 5.00 V |
| Output Current | 120 mA |
| Supply Current | 12.9 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Common Mode Rejection Ratio | 51 dB |
| Input Offset Drift | 15.0 µV/K |
| Bandwidth | 1.7 GHz |
| Slew Rate | 4.30 kV/μs |
| Gain Bandwidth Product | 1.70 GHz |
| Input Offset Voltage | 300 µV |
| Input Bias Current | 20 µA |
| Available Channels | S |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 1.7 GHz |
| Gain Bandwidth | 1700 MHz |
| Minimum CMRR Range | 51 dB |
| Supply Voltage | 5V ~ 12V |
| Supply Voltage (Max) | 12 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
