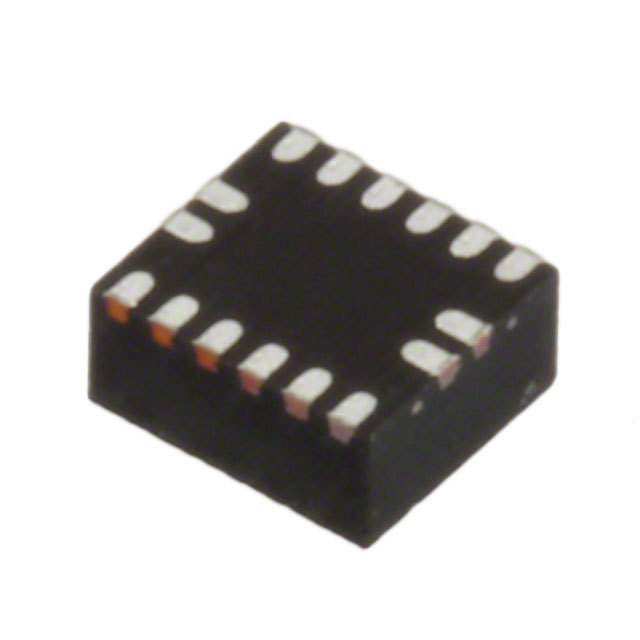

Image is for your reference only,please check specifications for details
- EP53F8QI - Altera
-
Manufacturer:Altera
-
ManyChip's Part#:MC86216042
-
Category:DC to DC Converter
-
Package:QFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Switching Regulator, Voltage-mode, 1.8A, 4000kHz Switching Freq-Max, CMOS, 3 X 3MM, 1.1MM HEIGHT, ROHS COMPLIANT, QFN-16
-
Stock Locations:
-
Availability:1,121 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.59
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down EP53F8QI DC to DC converter from Altera. This converter"s single output can produce a current up to 1.5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.4 V and no higher than 5.5 V. With an adjustable output that has a voltage of 0.6(Min) V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.42%/A(Typ) and line regulation of 0.31%/V(Typ). This converter is 94 % efficient. It has a switching frequency of 4000(Typ) kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
EP53F8QI Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | QFN-16 |
| Power Rating | 7 W |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 4.96V |
| Output Current | 1.5 A |
| Switching Frequency | 4000 kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.4 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.4 V |
| Input Voltage | 5.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
