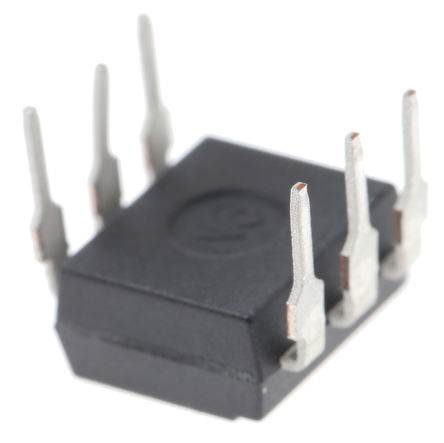

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- FEATURES
- 1\. This specification shall be applied to photocoupler. Model No. MOC3063 as an option.
- 2\. Applicable Models (Business dealing name)
- * Dual-in-line package :
- MOC3063-V : 1-channel type
- * Wide lead spacing package :
- MOC3063M-V : 1-channel type
- * Surface mounting package :
- MOC3063S-V : 1-channel type
- * Tape and reel packaging :
- MOC3063S TA1-V
- 3\. The relevant models are the models Approved by VDE
- according to DIN VDE 0884:1992-06
- Approved Model No.: MOC3063 / MOC3063M / MOC3063S /
- VDE approved No.: 094722
- (According to the specification DIN VDE 0884:1992-06)
- * Operating isolation voltage VIORM
- : 850V (Peak)
- * Transient voltage VTR: 6000V (Peak)
- * Pollution : 2 (According to VDE 0110-1 : 1997-04)
- * Clearances distance (Between input and output) : 7.0mm (MIN.)
- * Creepage distance (Between input and output) : 7.0mm (MIN.)
- * Isolation thickness between input and output : 0.4mm (MIN.)
- * Safety limit values Current (Isi) : 400mA (Diode side)
- Power (Psi) : 700mW (Phototransistor side)
- Temperature(Tsi) : 175°C
MOC3063 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Input Voltage (DC) | 1.20 V |
| Output Voltage | ≤600 V |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Forward Voltage | 1.2 V |
| Power Dissipation | 250 mW |
| Isolation Voltage | 5000 Vrms |
| Holding Current | 400 µA |
| Forward Current | 50 mA |
| Output Voltage (Max) | 420 VAC |
| Input Current (Min) | 50 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Size-Length | 7.3 mm |
| Size-Width | 6.5 mm |
| Size-Height | 3.5 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
