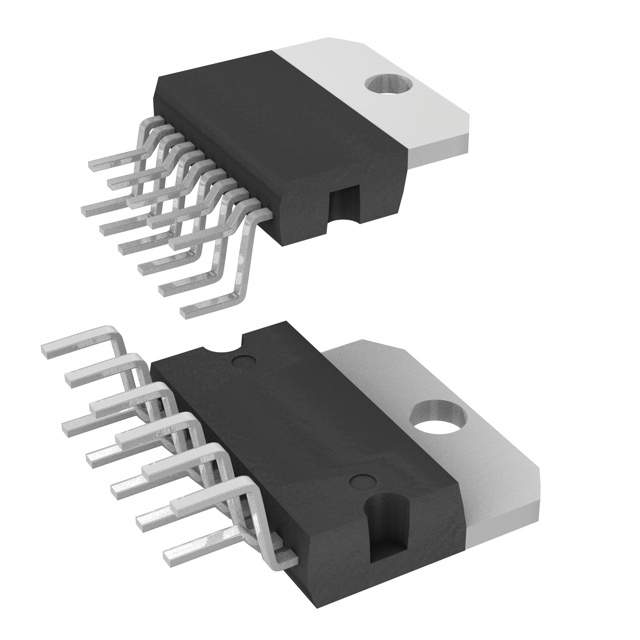

Image is for your reference only,please check specifications for details
- TDA7360 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC134745522
-
Category:Audio Amplifier IC
-
Package:Multiwatt-11
-
Datasheet:Datasheet 3D Model
-
Description:Amplifier IC 1Channel (Mono) or 2Channel (Stereo) Class AB 22W x 1 @ 3.2Ω; 12W x 2 @ 1.6Ω 11-Multiwatt
-
Stock Locations:
-
Availability:3,902 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.18
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Amplifier IC 1-Channel (Mono) or 2-Channel (Stereo) Class AB 11-Multiwatt
TDA7360 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | Multiwatt-11 |
| Supply Voltage (DC) | 18.0 V |
| Output Current | 5000 mA |
| Supply Current | 120 mA |
| Power Dissipation | 36000 mW |
| Quiescent Current | 120 mA |
| Output Power | 22 W |
| Gain | 26 dB |
| Output Current (Max) | 5000 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 36000 mW |
| Supply Voltage | 8V ~ 18V |
| Show | |
| Size-Length | 19.6 mm |
| Size-Width | 5 mm |
| Size-Height | 10.7 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
