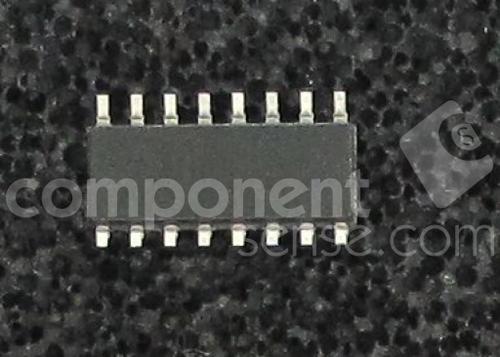

Image is for your reference only,please check specifications for details

HEF4053BT - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC32448343
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
NXP HEF4053BT Analog Switch, Triple Channel, SPDT, 3Channels, 60Ω, 3V to 15V, SOIC, 16Pins
Stock Locations:
Availability:
1,351 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HEF4053BT is a single-pole double-throw (SPDT) triple Analog Switch suitable for use as an analog or digital multiplexer/demultiplexer. Each switch has a digital select input (Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). All three switches share an enable input (E). A HIGH on E causes all switches into the high-impedance OFF-state, independent of Sn. VDD and VSS are the supply voltage connections for the digital control inputs (Sn and E). The VDD to VSS range is 3 to 15V. The analog inputs/outputs (nY0, nY1 and nZ) can swing between VDD as a positive limit and VEE as a negative limit. VDD  VEE may not exceed 15V. Unused inputs must be connected to VDD, VSS, or another input. For operation as a digital multiplexer/demultiplexer, VEE is connected to VSS (typically ground). VEE and VSS are the supply voltage connections for the switches.
Fully static operation
Standardized symmetrical output characteristics
-40 to 125°C Temperature range

Show

HEF4053BT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC
Supply Voltage (DC)	15.0 V
Number of Outputs	6 Output
Number of Channels	3 Channel
Number of Positions	16 Position
Number of Gates	3 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 15.5V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	3 V
	Show
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
