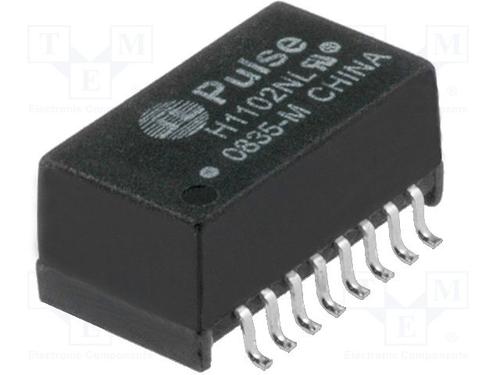

Image is for your reference only,please check specifications for details
- H1102NL - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC19096
-
Category:Transformer
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Telecom Transformer 1:1/1:1 0.65Ω Prim. DCR 0.65Ω Sec. DCR 16Term. Gull Wing SMD
-
Stock Locations:
-
Availability:9,250 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.22
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- RoHS peak reflow temperature rating: 245°C
- Meets IEEE 802.3 specification
- Compact footprint for use in the most space restrictive applications
H1102NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SMD |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Minimum CMRR Range | -30dB @100MHz |
| Show | |
| Size-Length | 12.7 mm |
| Size-Width | 9.53 mm |
| Size-Height | 5.97 mm |
| Weight | 0.85 g |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
