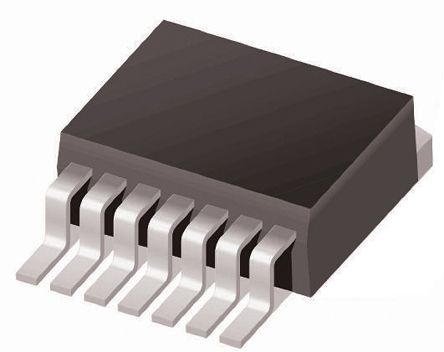

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description:
- The BTN8982TA is an integrated high current half bridge for motor drive applications. It is part of the NovalithIC™ family containing one p-channel highside MOSFET and one n-channel lowside MOSFET with an integrated driver IC in one package. Due to the p-channel highside switch the need for a charge pump is eliminated thus minimizing EMI. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, undervoltage, overcurrent and short circuit.
- The BTN8982TA provides a cost optimized solution for protected high current PWM motor drives with very low board space consumption.
- Summary of Features:
- •Path resistance of max. 20.4 mΩ @ 150 °C (typ. 10.0 mΩ @ 25 °C)
- ◦High Side: max. 10.5 mΩ @ 150 °C (typ. 5.3 mΩ @ 25 °C)
- ◦Low Side: max. 9.9 mΩ @ 150 °C (typ. 4.7 mΩ @ 25 °C)
- •Enhanced switching speed for reduced switching losses
- •Capable for high PWM frequency combined with active freewheeling
- •Low quiescent current of typ. 7 μA @ 25 °C
- •Switched mode current limitation for reduced power dissipation in overcurrent
- •Current limitation level of 55 A min.
- •Status flag diagnosis with current sense capability
- •Overtemperature shut down with latch behaviour
- •Undervoltage shut down
- •Driver circuit with logic level inputs
- •Adjustable slew rates for optimized EMI
- •Operation up to 40V
- •Green Product (RoHS compliant)
- •AEC Qualified
BTN8982TA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | TO-263-7 |
| Supply Voltage (DC) | 8.00V (min) |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Positions | 7 Position |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 0.40 VDC |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 8 V |
| Input Voltage | 18 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 10.3 mm |
| Size-Height | 4.4 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
