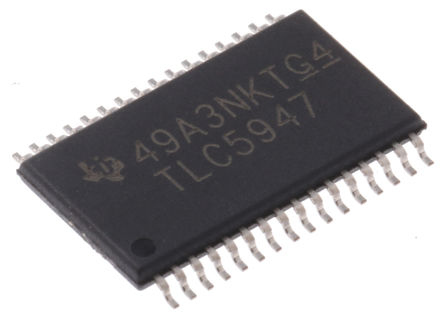

Image is for your reference only,please check specifications for details

TLC5947DAP - TI
Manufacturer:
TI
ManyChip's Part#:
MC21261959
Category:
LED Driver, LED Display Driver
Package:
HTSSOP-32
Datasheet:
Datasheet 3D Model
Description:
24Channel, 12Bit PWM LED Driver with Internal Oscillator 32-HTSSOP -40℃ to 85℃
Stock Locations:
Availability:
476 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC5947DAP is a 24-channel, 12-bit PWM Constant-current Sink LED Driver with internal oscillator. Each channel is individually adjustable with 4096 pulse-width modulated (PWM) steps. PWM control is repeated automatically with the programmed greyscale (GS) data. GS data are written via a serial interface port. The current value of all 24 channels is set by a single external resistor. The TLC5947DAP has a thermal shutdown (TSD) function that turns off all output drivers during an over-temperature condition. All of the output drivers automatically restart when the temperature returns to normal conditions.
30mA Capability (constant-current sink)
12-bit (4096 steps) Greyscale PWM control
±2% (typical) Channel-to-channel, ±2% (typical) Device-to-device constant-current accuracy
CMOS logic level I/O
30MHz Data transfer rate (standalone)
15MHz Data transfer rate (cascaded devices, SCLK duty = 50%)
Shift out data changes with falling edge to avoid data shift errors
Auto display repeat
4MHz Internal oscillator
Automatic shutdown at over-temperature conditions, restart under normal temperature thermal shutdown
4-channel Grouped delay to prevent inrush current noise reduction
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TLC5947DAP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	HTSSOP-32
Frequency	4 MHz
Number of Outputs	24 Output
Input Voltage (DC)	3.00V ~ 5.50V
Output Voltage	30 V
Output Current	30 mA
Supply Current	90000 mA
Number of Positions	32 Position
Power Dissipation	5318 mW
Switching Frequency	30 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	3 V
Output Voltage (Max)	30 V
Output Current (Max)	30 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5318 mW
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
Input Voltage	3V ~ 5.5V
	Show
Size-Length	11 mm
Size-Width	6.2 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
