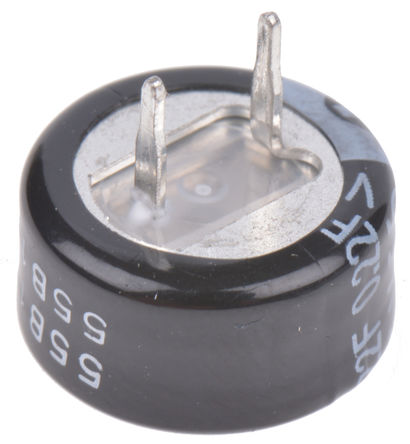

Image is for your reference only,please check specifications for details
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EECF5R5U224 is a radial leaded electric Double-layer Capacitor/Gold Capacitor for memory backup of video and audio equipment.
- * 300mA or less Recommended discharge current
- Stacked coin type
EECF5R5U224 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Radial, Coin |
| Pin Pitch | 5 mm |
| Voltage Rating (DC) | 5.50 V |
| Operating Voltage | 5.5 VDC |
| Capacitance | 0.22 F |
| Capacitance Tolerance | +80 % |
| Part Family | NF |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 5.5 V |
| Show | |
| Size-Width | 7.5 mm |
| Size-Height | 7.5 mm |
| Size-Diameter | 13.5 mm |
| Lead Length | 6.00 mm |
| Size-Thickness | 7.5 mm |
| Dielectric Material | Aluminum Electrolytic |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| Minimum Packing Quantity | 100 |
| Life (Hours) | 1000h @70℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
