Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 6 Pin |

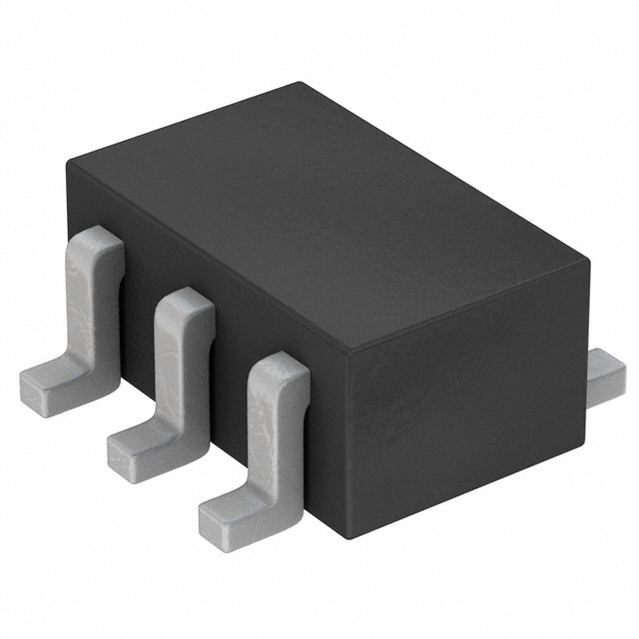

Case/Package | SOT-323-6 |
Voltage Rating (DC) | -50.0 V |
Current Rating | -100 mA |
Power Rating | 0.15 W |
Polarity | PNP |
Power Dissipation | 150 mW |
Breakdown Voltage (Collector to Emitter) | 50 V |
Continuous Collector Current | 100mA |
hFE Min | 100 @1mA, 5V |
Input Power (Max) | 150 mW |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Gain Bandwidth | 250 MHz |
Power Dissipation (Max) | 150 mW |
Show | |
Size-Length | 2 mm |
Size-Width | 1.25 mm |
Size-Height | 0.9 mm |
Operating Temperature | -55℃ ~ 150℃ |
Product Lifecycle Status | Discontinued at Digi-Key |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
