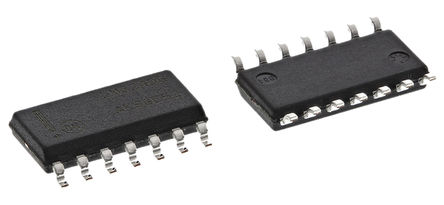

Image is for your reference only,please check specifications for details

LM324DG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1556800
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR LM324DG Operational Amplifier, Quad, 4 Amplifier, 1MHz, 0.6V/µs, 3V to 32V, SOIC, 14Pins
Stock Locations:
Availability:
10,115 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM324DG is a quad Operational Amplifier with true differential inputs. It has several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3V or as high as 32V with quiescent currents about one-fifth of those associated with the MC1741 (on a per amplifier basis). The common-mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
Short-circuited protected outputs
True differential input stage
Internally compensated
Common-mode range extends to negative supply
Industry standard pin-outs
ESD Clamps on the inputs increase ruggedness of the device without affecting operation
Continuous output short-circuit duration

Show

LM324DG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	5.00 V
Operating Voltage	3V ~ 32V
Halogen Free Status	Halogen Free
Output Current	60 mA
Supply Current	1.4 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	70 dB
Bandwidth	1 MHz
Slew Rate	600 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	2 mV
Input Bias Current	90 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	65 dB
Supply Voltage	3V ~ 32V
Supply Voltage (Max)	32 V
Supply Voltage (Min)	3 V
Input Voltage	0V ~ 28.3V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
