Description

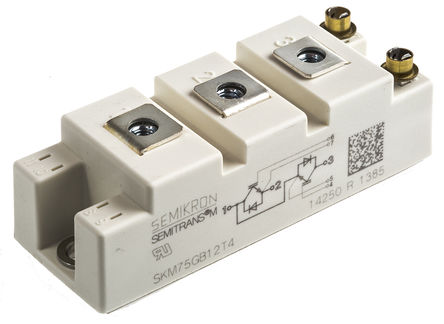

The SKM75GB12T4 is a SEMITRANS® 2 fast IGBT Module for use with AC inverter drives and UPS. It features insulated copper base plate using DBC technology (Direct Bonded Copper) and increased power cycling capability.
Half-bridge switch
IGBT4 = 4th generation medium fast Trench IGBT (Infineon)
CAL4 = Soft switching 4th generation CAL-diode
Integrated gate resistor
For higher switching frequencies up to 12kHz
UL recognized, file number E63532

Show

SKM75GB12T4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	7 Pin
Case/Package	Semitrans2
Number of Positions	7 Position
Polarity	Dual N-Channel
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	94 mm
Size-Width	34 mm
Size-Height	30.1 mm
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
