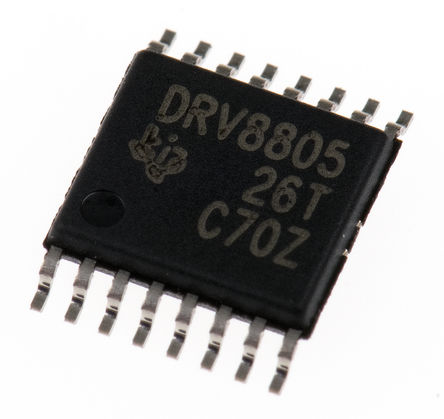

DRV8805PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC13547150
Category:
Motor Driver
Package:
HTSSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8805PWP Motor Driver/Controller, Stepper, 8V to 60V supply, 60V/2A/4Outputs, HTSSOP-16
Stock Locations:
Availability:
278 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8805PWP is a 2A unipolar stepper Motor Driver with on-chip indexer. It includes four low side drivers with over-current protection and provides built-in diodes to clamp turn-off transients generated by the motor windings. Indexer logic to control a unipolar stepper motor using a simple step/direction interface is also integrated. The DRV8805 can supply up to 2A (one channel on) continuous output current per channel, at 25°C with proper PCB heat-sinking. Internal shutdown functions are provided for over-current protection, short-circuit protection, under-voltage lockout and over-temperature and faults are indicated by a fault output pin.
4-channel protected low-side driver
Four NMOS FETs with over-current protection
Integrated inductive catch diodes
Indexer/translator for unipolar stepper motors
Simple step/direction interface
Green product and no Sb/Br

Show

DRV8805PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Supply Voltage (DC)	8.00V (min)
Number of Outputs	4 Output
Output Voltage	60 V
Output Current	2 A
Number of Positions	16 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8.2V ~ 60V
Supply Voltage (Max)	60 V
Supply Voltage (Min)	8 V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
