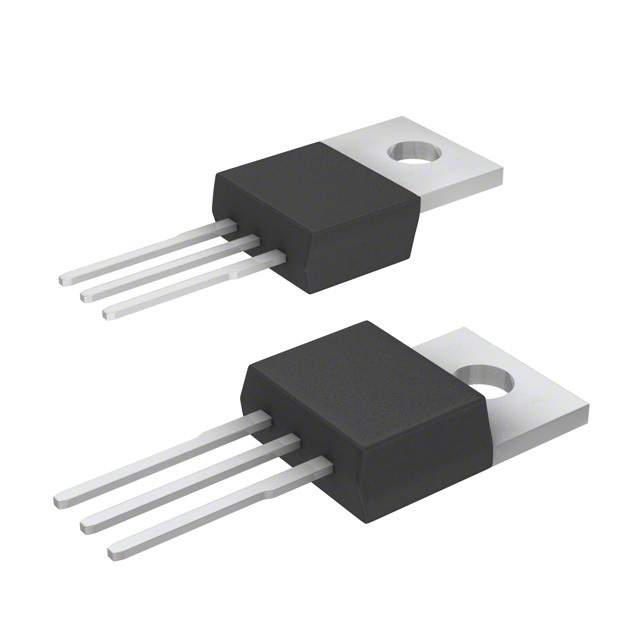

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS141 is a smart low side Power Switch, N channel vertical power FET in Smart SIPMOS® chip on chip technology. It provides embedded protection functions.
Logic Level Input
Input Protection (ESD)
Thermal Shutdown with Latch
Overload Protection
Short-circuit Protection
Overvoltage Protection
Current Limitation
Status Feedback with External Input Resistor
Analogue Driving Possible
AEC Qualified
Green Product
Due to technical requirements components may contain dangerous substances, component may only be used in life-support devices or systems with the express written approval of Infineon Technologies.

Show

BTS141 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Supply Voltage (DC)	1.30V (min)
Voltage Rating (DC)	60.0 V
Current Rating	25.0 A
Number of Outputs	1 Output
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	28 mΩ
Polarity	N-Channel
Power Dissipation	149000 mW
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	12.0 A
Output Current (Max)	12 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	34 V
Supply Voltage (Max)	10 V
Supply Voltage (Min)	1.3 V
	Show
Size-Length	17.5 mm
Size-Width	9.90 mm
Size-Thickness	4.40 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
